The Total Lift Bed™ sets a new standard in patients and care-giver treatment safety and comfort. The revolutionary design allows one care giver, using only the pre-programed user friendly handset control, to raise the user from lying to a full standing position and any positions in between with Zero Lift™

The Total Lift Bed™ reduces the caregivers and patient related injuries from getting in and out of bed.

The Concept: The Total Lift Bed™ is the only bed having a motorized Foot lifter ™, moving in and out, allowing positions which are not possible in any other bed. The Total Lift special Foot Lifter ™ adjusts itself to the user height, and only then will allow the bed to start tilting.

The Total Lift Bed ™
  WITH JUST A PRESS OF A BUTTON YOU CAN BRING A PATIENT TO ANY POSITION DESIRED

The Patent-Pending technology of the Total Lift Bed™ moves the Foot Lifter™ towards the feet of the patient/user, and only after making contact will the bed start the tilting motion, preventing any unwanted movement of the patient in the bed. If positioning the bed to a fully standing position, the Foot Lifter™ will gradually lower the patient so when the bed is in a fully standing position the Foot Lifter™ will be parallel to the floor, allowing the patient to simply walk out of bed, with or without assistance. The patient can also be tilted for treatment, in any desired angle, for as long as needed.

sitting

 KEY PRODUCT FEATURES
ROW

Some of the clinical applications the Total Lift Bed can helps in:

  • Hip Replacement.
  • Knee replacement.
  • Spinal Surgery.
  • Cardio – Thoracic Surgery.
  • Respiratory problems.
  • Post Abdominal Surgery.
  • Heart and Lungs Transplant.

Designed to improve safety and quality of life for people who have difficulty performing daily personal care activities, such as getting in and out of bed as well as for the professional nursing staff, caregivers and family members who care for them. Doing More than Any Other Bed: The Vitalgo Total Lift Bed is the ideal solution for safeguarding users and caregivers, such as family members, nurses and therapists.

The Bed can bring the patient to all possible position, with an easy press on the Handset control.

  • Seating with Legs Down.
  • Seating with Legs up.
  • Treatment position.
  • Fully Standing position with foot lifter parallel to floor.
  • Unique Smart Break casters design, controlled by the hand set, for maximum stability.

When reaching the appropriate angle, which will avoid body fraction, the Foot Lifter™ will start moving down towards the floor, bringing the patient safely to a standing position with feet on floor level, always keeping his center of gravity to the back. The Total Lift Bed™ excellent for the use of:

  • Hospitals
  • Nursing Homes
  • Home care
   PARTS
Total Lift Bed™Parts:

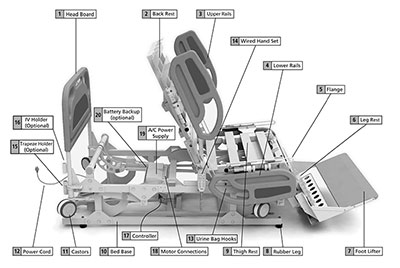

Please click on the image to view an enlarged picture depicting the various parts of the Total Lift Bed™. control

  UNPACKING AND SET-UP
totalbed   totalbed

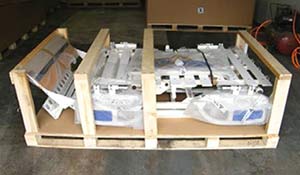

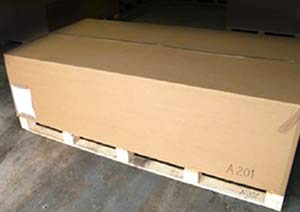

Step 1 - Bed on crated Pallet. Step 2 - Remove Box from wooden Pallet.
totalbed totalbed

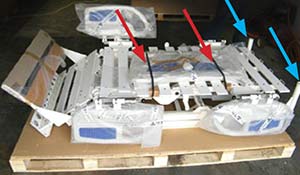

Step 3 - Bed on crated Pallet. Step 4 - Remove bands holding Head Board and connect Head Board to flanges.
totalbed totalbed

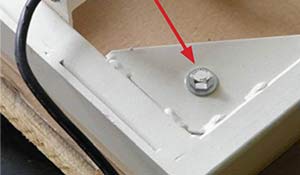

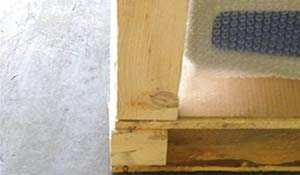

Step 5 - Unscrew 4 nuts Which connect the bed to the Pallet. The screws are in 4 corners of Bed.
After taking off the nut, remove screws by hand, in order to allow the Bed to move from pallet.

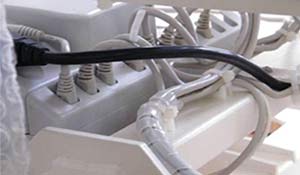

  Step 6 - Make sure all plugs and power cord are
in place and connected.
totalbed   CONTROLLER

Step 7 - RESET

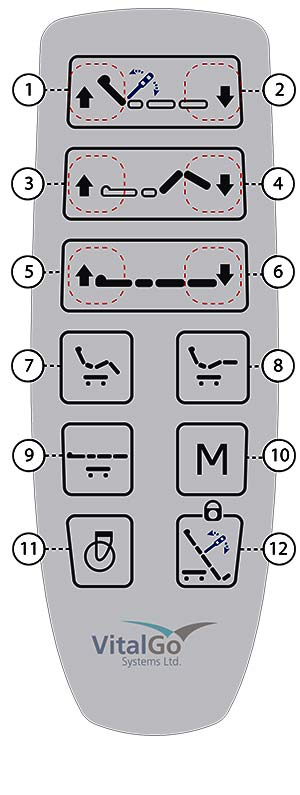

Before moving the bed or pressing any button on the Hand Set, a “RESET” must be done. Plug Bed in Electricity(or use Battery Backup)

Press buttons 3 & 4 together. You will hear beeping sound. If you don’t hear, press again until you start hearing. When beeping stops, press buttons 1 & 2 at same time. The bed parts will start moving and all actuators will move into their reset position. Keep pressing until two beeps are heard and bed stop moving.

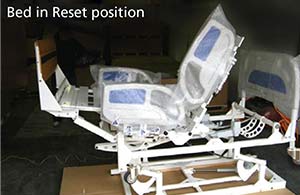

See bellow the way the Bed should look after Reset.
Remarks -
1. When pressing 1 & 2 and bed starts moving - First movement of Bed should be up horizontally. If the beds does not move up, check connections and restart the steps above.
2. When pressing 1 & 2, short beeps might be heard. This is normal. Continue until the two long beeps are heard and bed stop moving.

totalbed   totalbed
Step 8 - After finishing Reset, press button 9 and
bring Bed to sleeping position.

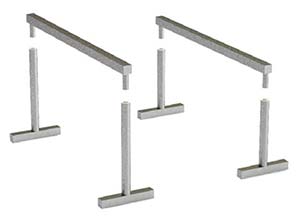

Step 9 - Assemble the metal bridge frame.
They are in two different heights.
The low one should be placed in head area and the higher one in legs area.
totalbed totalbed

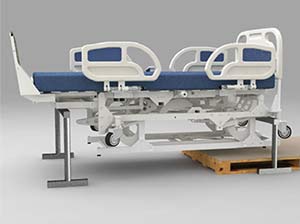

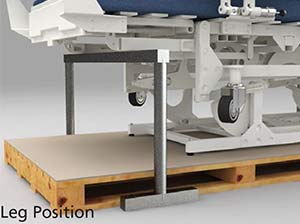

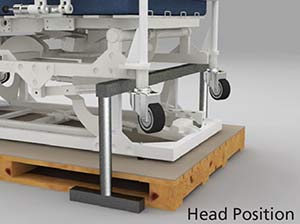

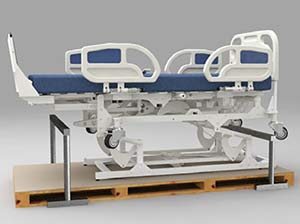

Step 10 - Press button 5 until Bed elevates to highest position. Place the metal frame according to positions in the pictures. Step 11 - Press button 6 until you Lower the bed so it will touch the metal frame.
totalbed totalbed

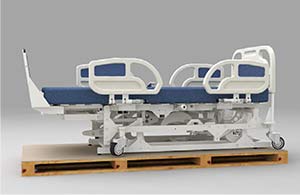

Step 12 - Press button 6 until frame of bed raises
off pallet - at this time the bed is not on
the pallet anymore.
Step 13 -Pull the pallet from under the bed.
totalbed totalbed

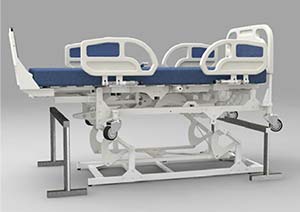

Step 14 -Press Button 5 until frame of Bed is on
floor and Metal Bridge are loose.
Step 15 - Remove Metal Bridges.
totalbed

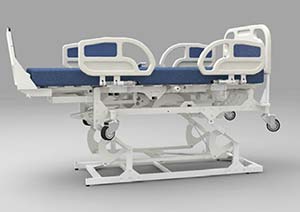

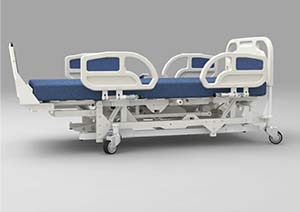

Step 16 - Press button 11 (wheels position) until
Bed is on wheels. You can now roll Bed.


  Initialization of the Bed (Only by Technician)

Step 1 - Press Buttons (3) & (4) together – Continues beeps will be heard. Continue pressing until the beeps stop.

Step 2 – Press Buttons (1) & (2) together. The bed will bring itself to the Initialization position step by step. Continue pressing until Two beeps are heard. To ensure the Bed has reached its initialization position, press again and verify the two beeps are heard. Important remark: In Initialization, the first movement of the bed should be horizontally up. If the bed does not move to its highest position something is wrong. Check all connections and redo steps 1 and 2. if the bed still does not work consult with VitalGo’s authorized technician.

Step 3 – Bring the Bed to the Sleeping position with Button (9). At the end of the initialization procedure all motors should be in end of stroke position (in or out).


  Link to Online Video (You Tube) and Demonstration
CLICK HERE TO VIEW VIDEO OF HOW to Instructions for the Total Lift Bed™

training

  AVAILABLE LITERATURE
total lift Total Lift Bed™ Sell Sheet Total Lift Bed™ Sell Sheet CLICK HERE
AME 1000MOB Total Lift Bed™ Instruction Manual CLICK HERE
venturi owners Total Lift Bed™ Scale CLICK HERE
venturi how to Total Lift Bed™ Unpacking Instructions

CLICK HERE

Click here to download Adobe Acrobat Reader.
  BED DIMENSIONS
Length - Overall Length (in regular position) 83” (210 cm)
Overall Length – Fully extended (Foot lifter out) 86.60” (220cm)
Width – Overall Width – With Side -Rails 39.5” (100 cm)
Overall Width – Without Side- Rails. .38” (96.50cm)
Height – Low Position – deck to floor. 16.75” (42.50cm)
High Position – deck to floor. 30” (76.20cm)
Clearance – From frame to floor. 1” (2.54cm)
In Standing Position – From top of Bed to floor 80” (203.20cm)
Length including Foot Lifter. 87” (221cm)
  Mattress – (Foam)
Length 78” (198cm)
Width 35” (89cm)
Height 6” (15.20cm)
