Bariatric Trapeze 600
  • Product Overview
  • Operational Instructions
  • Downloads
  • Technical Specifications

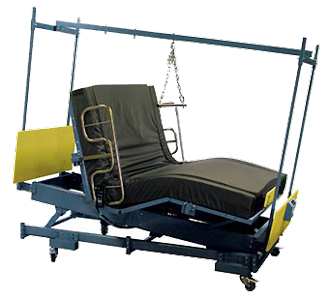

The Big Boyz Trapeze is Durable Medical Equipment designed to provide the patient with assistance in changing body positions in addition to entering and exiting bed. BARI TRAPFREE
The Big Boyz Trapeze has a fracture frame set-up, four (4) posted and bed mounted. This item provides the stability and security needed for the Bariatric population with a 1,000 lb. Patient Weight Capacity. trapeze
  ASSEMBLY INSTRUCTIONS

TOOLS REQUIRED:

  • Mallet
  • 9/16 Rachet
  • 9/16 Wrench

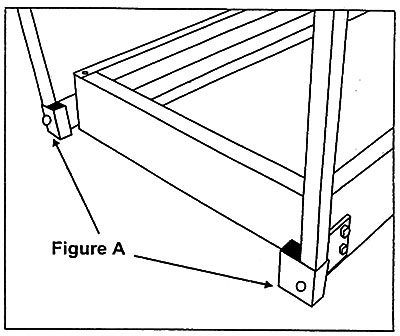

Step 1: Take the four posts and place them into the channels on the frame (figure A). trapeze 600

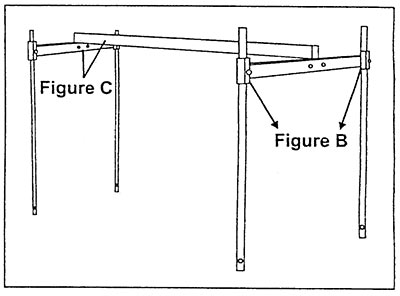

Step 2: Take the two short cross bars and slide them on the top of the posts for the width of the bed, at the head of the foot. Secure with bolts and tighten firmly (figure B). trap 600

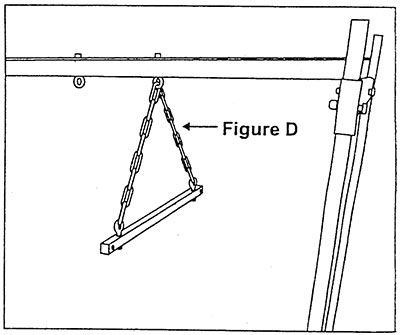

Step 3: Place trapeze pull bar at the head end (figure D). bolt long cross bar (length of bed) between the two short cross bars. Secure with bolts and tighten firmly (figure C). trap 600

training
  AVAILABLE LITERATURE
AME3000 Sell Sheet AME3000Sell Sheet BARI Traipeze 600 BARITRAPEZE600 Brochure and Assembly CLICK HERE
Click here to download Adobe Acrobat Reader.
  TECHNICAL SPECIFICATIONS
There are currently no technical specifications for this product.
