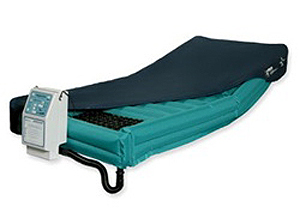

The AME1400 is a low air loss mattress overlay system that revolutionizes the overlay market by providing customized comfort and optimal skin protection! The AME1400  low air loss systems with the ultimate skin protection of a ROHO® HIGH PROFILE® Cushion in the heel area to create an optimal environment for skin healing and protection.

The AME1400 is so versatile! It sets up in minutes on top of any existing mattress – no need to store mattresses! The ROHO HIGH PROFILE cushion in the heel area, our HealFloat™ feature, protects heels and creates an optimal environment for wound healing. Simply remove the cushion to use on any chair for added skin protection.

AME1400 provides the benefits of AME3500 in a convenient Mattress  Overlay featuring HealFloat™:
  • System Lock: Helps to prevent accidental adjustments, and automatically resets the system in case of power failure.
  • Firm Mattress Mode: Helps facilitate nursing care during dressing changes and patient repositioning.
  • HealFloat™: ROHO HIGH PROFILE Cushion inserted in the heel area creates an optimal environment for skin healing and protection.
  • Pulsation (alternating pressure): Provides two cycle settings that readjust the system to ensure patient comfort.

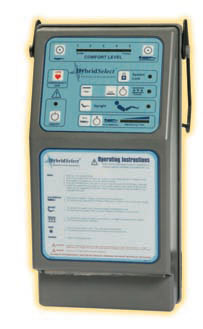

AME1400 controller
This powerful low-air-loss system gives you advanced, easy-to-operate settings in a simple overlay. With the help of AME1400, it’s never been this easy to protect patients’ skin and keep them comfortable.

Control unit provides constant inflation and can be adjusted to suit your needs.

Zoned Overlay

The AME1400 low air loss mattress overlay system creates an optimal environment for skin healing and protection. The zoned overlay utilizes an internal manifold which allows three independent mattress sections to be set using one button on the control unit. AME1400 manages moisture and temperature in order to promote skin healing with “true” low air loss allowing air to escape through the top of the mattress.
Adjustable control unit settings for optimum comfort.

High grade materials provide long product life even if patient’s needs change.

Firm Mattress Mode
To aid in the placement and maneuvering of the patient, the control unit is equipped with a Firm Mattress Mode. The Firm Mattress Mode will fully inflate the mattress making it firm for easy positioning. The Firm Mattress Mode will automatically terminate when the time displayed on the keypad has expired.

Pulsate Mode
This control unit is equipped with the Pulsate Mode. When selected, the control unit will continuously readjust the system pressure (proportional to the Comfort Level setting). Change in pressure is gradual to ensure maximum patient comfort.
  • Fits on top of existing mattress. No need to store mattress!
  • Easy-to-adjust control unit provides constant inflation.
  • Adjustable control settings provide optimum comfort.
  • Mattress overlay and cushion are easy to clean.
  • Durable, high-grade materials provide long product life.
  • Low air loss overlay system
  • Air cells are organized in three zones (heat, seat, foot)
  • ROHO high profile cushion is integrated at the foot section
  • Integrated side air bolsters to prevent entrapment and keeps patient centered
  • Low Air loss circulates air for moisture management
  • Waterproof, breathable high quality nylon top cover reduces friction and shear
  • Optional foam supplement can be used in place of existing mattress

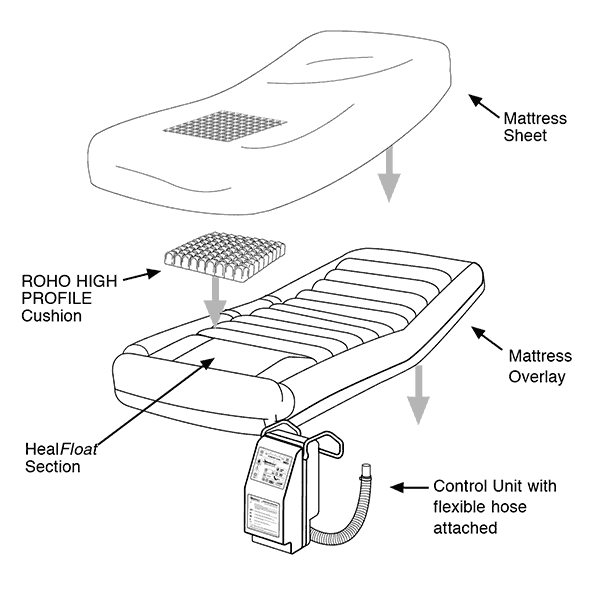

1. Place the control unit handle over the edge of the footboard. The handle will self adjust to the width of the footboard.

Click on diagram to see larger viewcallout

2. Insert the hose fitting with the clip into the air outlet of the control unit and turn 1/4 turn. Ensure the hose fitting is firmly seated and that the latch ‘clicks’ into place.
3. Insert the other end of the hose into the mattress hose fitting located at the foot of
the mattress.
4. Ensure the power entry switch is “OFF”.
5. Firmly insert the power cord into the outlet on the control unit.
6. Insert the other end of the power cord into an equivalent grounded power receptacle.
7. Press the power entry switch “ON” and refer to Manual Setup

  Video Set Up Demonstration

video demo Setup Demonstration of the
AME1400 Mattress Replacement System .


ame 1400 low air loss mattress AME1400 Low Air Loss mattress AME1400 Brochure CLICK HERE
extricare brochure AME1400 Owners Manual AME1400 Owners Manual CLICK HERE
Click here to download Adobe Acrobat Reader.


Cushion: 18" x 16" (48 cm x 41 cm)
Pulsation: 1-minute, 5-minute intervals
Medicare Code: E0372
Mattress Configurations Individual baffles divided into 3 sections; head, seat and foot. Integrated side air bolsters. ROHO HIGH PROFILE cushion in foot section.
Weight Control Unit – 9 lbs. (4.0 kg)
Mattress Overlay – 5 lbs. (2.3 kg)
Cushion – 3.5 lbs (1.6 kg)
Voltage 120 V AC 50/60 Hz
Current Less than 5 amps
Certification UL
Weight Limit
300 lbs. (136 kg)
Mattress Sizes
Fits most standard bed frames.
(Top Surface)
Waterproof, vapor permeable sheet

One Year Limited Warranty on control unit and soft goods;

Two-Year Limited Warranty on removable HIGH PROFILE cushion.
