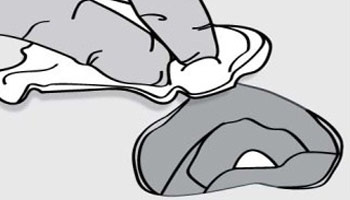

Prepare wound bed for dressing and clean periwound skin.

STEP TWO:

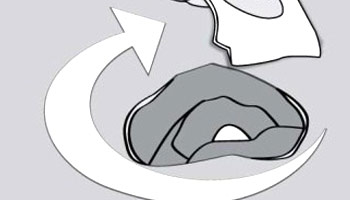

Wipe periwound skin to make sure surface is dry. Use skin prep if desired.

STEP THREE:

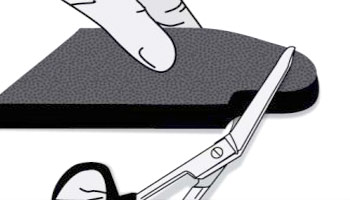

Cut foam to size of wound

STEP FOUR:

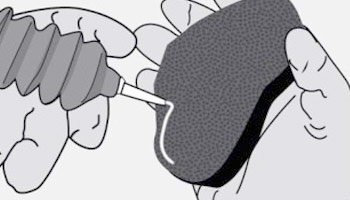

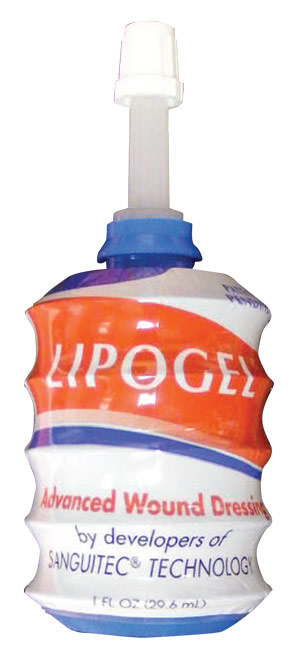

Apply LipoGel to underside of dressing.

STEP FIVE:

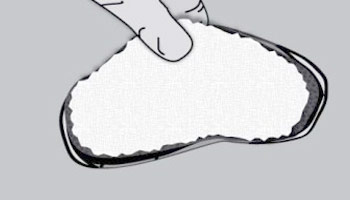

Place dressing into wound, pressing to spread LipoGel. Alternatively, LipoGel may be spread directly into the wound before foam is applied.

STEP SIX:

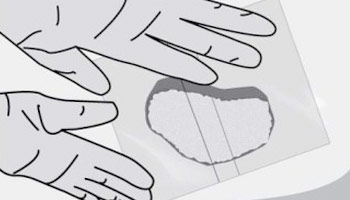

.Apply clear drape over > wound, press around periwound skin to seal.

STEP SEVEN:

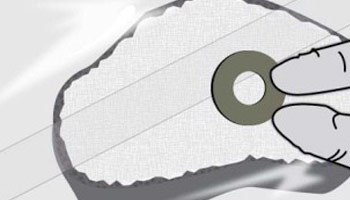

Remove red marked covering from one side of EZ seal disc and apply firmly to drape.

STEP EIGHT:

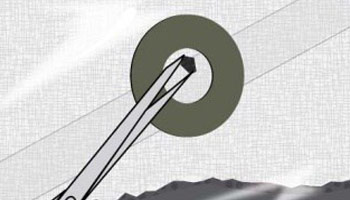

Using forceps or
scissors, tear small opening in drape thru center of EZ seal disc.

STEP NINE:

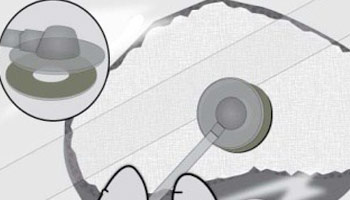

Remove covering from top side of EZ seal disc, apply ComforCap suction head, press down to secure.

STEP TEN:

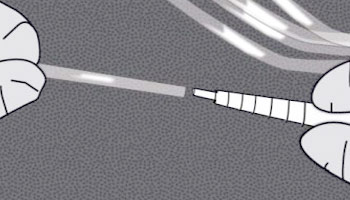

Connect open end of suction tubing to connection tubing from pump.

STEP ELEVEN:

Start pump operation, observe dressing to ensure contraction of foam and drape. Press clear dressing around surface of periwound skin to facilitate seal.

STEP TWELVE:

Finally, secure tubing between wound and pump to prevent pulling and disconnection. Make sure to avoid areas where tubing could cause pressure in certain patient positions.
