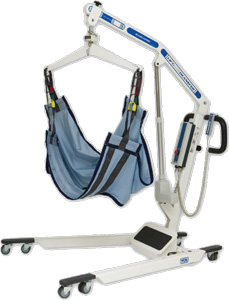

The POWERLIFT 1000MOB BARIATRIC LIFT AND TRANSFER- ARM STYLE  by Wheelchairs of Kansas is the traditional style, portable lift constructed of heavy-duty steel.

The easy rolling casters allows to position the lift into varies locations with all six that swivel. The lift is operated by a four-button hand control and a linear driven actuator that is practically silent. For added safety the emergency release allows the individual to be lowered when battery powered is interrupted.

By the simple touch of a button, the base width adjusts automatically for stability. This lift is battery powered with a internal charger. The weight capacity can be 750 lbs. or 1,000 lbs. by simply adjusting the slider clamp.

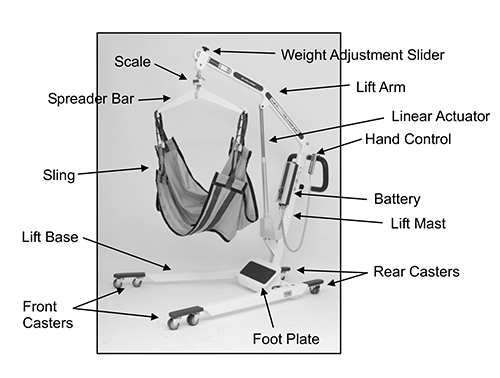

Power lift 1000 Mob


WEIGHT ADJUSTMENT SLIDER

To change the weight capacity, loosen the black knob. Move slider clamp to desired weight capacity. Tighten knob when the slider clamp is in place.



EMERGENCY LOWER RELEASE

The lift has a emergency lower release in the event of electrical failure. Locate the red clip on the base of the actuator rod, slide up to activate the emergency release.

  BATTERY
To operate lift, turn battery on by pressing the red button. Press the red button again to turn the battery off. This lift runs off a 24V Gel battery. To charge the battery, plug the lift into a 115V outlet with the cord.

   KEY PRODUCT FEATURES
  • (1000 LB. CAPACITY)
  • Automatic base width adjust-ability
  • Two easy lift adjustment settings
  • Battery powered with internal charger
  • 750 lb. and 1000 lb. weight capacity
  • Digital scale
  • Large and x-large commode slings
  • Large sling
  ASSEMBLY
1. Remove all packing wrap from the lift base. Remove the two bolts, washer and nuts from the base. Insert lift mast into position securing with the 2 bolts supplied. Place washer and nut on the end of the bolt and tighten using a 3/4” wrench. figure4
2. Remove the bolt at the top of the lift mast. Place the lift arm in place. Be sure when placing the bolt through to place the smaller washer on the outside of the mast, then the larger washers next to the arm. See picture below for proper placement. Secure nut with 9/16” wrench and #3 allen, then tighten acorn nut. Lift arm should move freely up and down.figure6 figure5
3. Attach the bottom of the actuator first using a #3 allen wrench and ½” wrench.
4. Using the #3 allen wrench and ½” wrench, attach the top of the actuator.
5. Using a #3 allen wrench attach the smaller or bottom portion of the battery to the lift mast. As shown in the picture. The larger or top portion of the battery snaps into place by placing the bottom into the lower half of the battery. Then snap the top into place.
6. Looking at the bottom of the battery pack, starting at the left, plug in the hand control cord, next plug in the arm actuator cord and then base (black cord) actuator cord. The cord that plugs into the wall is used to charge the battery, plug it in above the other outlets as indicated.
7.

After assembly is complete, articulate the lift to check all functions are performing properly. To operate lift, turn battery on by pressing the red button. Press the red button again to turn the battery off.



NOTE: The lift will not operate if plugged into 115V power source.


  OPERATING INSTRUCTIONS
arrow To operate lift, turn battery on by pressing the red button. Press the red button again to turn the battery off. This lift runs off a 24V Gel battery. To charge the battery, plug the lift into a 115V outlet with the cord supplied. The cord should be plugged into the bottom of the battery. NOTE: The lift will not operate when plugged into 115V power source svedon
arrow Looking at the bottom of the battery pack, starting at the left, plug in the hand control cord, next plug in the arm actuator cord and then base (black cord) actuator cord. The cord that plugs into the wall is used to charge the battery, plug it in above the others as indicated.
1. Fold sling in half lengthwise.
2. Roll patient away from attendant
3. Place folded sling along length of patient as close to back as possible with lower edge of sling slightly below Knees.
4. Roll patient back toward attendant and open sling fully.
5. Roll patient back so they are centered along the length of sling.
6. Center lift over the patient by rolling the base underneath the bed. Using the hand control widen the base of the lift for maximum stability
7. Using the hand control, lower the spreader bar down to the patient.
8. Attach the straps from the sling onto the spreader bar.
9. Press the up button to raise the patient, check to ensure patient is seated correctly and is not pitching forward. If patient is pitching forward, return to starting position and make adjustments on the sling straps
  USAGE TRAINING
arrow

The sling offered is designed for bariatric individuals up to 1,000 lbs. This sling is not intended for use on non-bariatric individuals. Below is the recommended weight for the large and x-large slings (ultimately sling size should be based on individuals shape and size):

Large 450-750 lbs. (204-340 kg)

X-Large 600-1000 lbs. (272-454 kg)

training

  AVAILABLE LITERATURE
1000mob POWERLIFT1000 MOB Sell Sheet POWERLIFT1000 MOB Sell Sheet CLICK HERE
AME3000Sell Sheet AME 900 PRIME POWERLIFT1000 MOB Brochure CLICK HERE
venturi owners POWERLIFT1000 User Manual CLICK HERE
Click here to download Adobe Acrobat Reader.
  MODEL SPECIFICATIONS

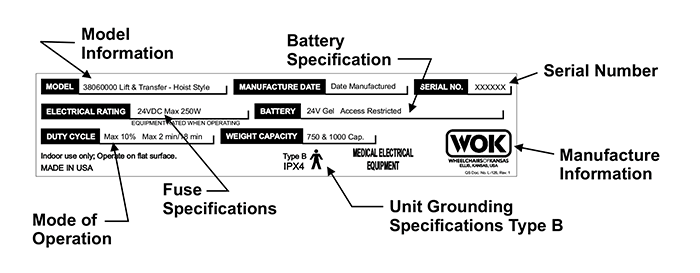

mob1000 specs
Base Width 29.5”-53”
Base Length 61.5”
Base Height 4.75”
Lift Height 34”-75”
Caster Size 3”
Operating Voltage 24VDC
Battery 24V
GelCharger Input 115AC
Charging Time. Min. 4 Hours
Weight of Lift 212 lbs.
Shipping Weight 2 boxes - 113 lbs. and 131 lbs.

Weight Capacity

750 or 1,000 lb.

(Exceeding this limit will also void the warranty.)
