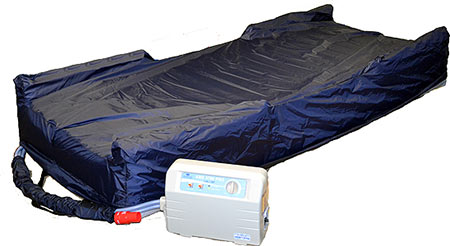

AME ProTec 3700S

Bed sore or pressure sore are significant and growing problems for patients in confinement to bed or a chair, being unable to move, losing of bowel or bladder control, having poor nutrition, or with lowered mental awareness. Bed sore leads to pain, a long stay in the hospital or nursing home and slower recovery from health problems - therefore increase the cost and decrease the quality of care. Once developed, bed sore healing can be challenging in many cases.

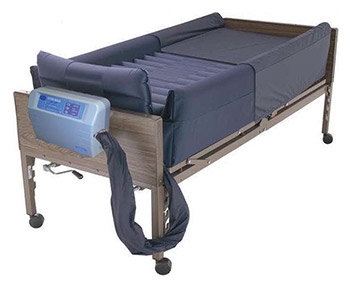

AME ProTec 3700S Alternating pressure and low air loss technologies is effective in healing and preventing these wounds and make care giving tasks significantly easier.

AME3500S
 Energy Efficient Control Unit (using low wattage saves 80% of electricity)



Manually Controlled

  • Power switch
  • Pressure selector knob
  • Normal pressure LED
  • Low pressure LED
  • Alarm reset button
  • Static Control button
ame3700s control
  Key Product Features
  • Low air loss and alternating pressure mattress system.
  • Alternating pressure control unit cycles air every 5-10 minutes between A/B Cells.
  • Low air loss circulates air for moisture management.

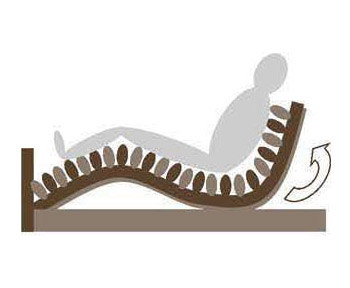

  • 20 nylon-coated, 8” deep air cells provide full immersion and envelope the patient.
  • 2” foam base with waterproof barrier adds safety and comfort and prevents contamination.
  • CPR quick release for rapid deflation.
  • Quiet, energy efficient, reliable and lightweight control unit.
  • Simple comfort dial comfort adjustment accommodates infinite pressure settings.
  • Continuous pressure monitoring and low pressure/normal pressure indicator lights.
  • Waterproof, breathable high quality nylon top cover reduces friction and shear.
  • Low friction and shear nylon top cover; waterproof & breathable.
  • Integrated raised side air bolsters with egress openings prevent patient falls.

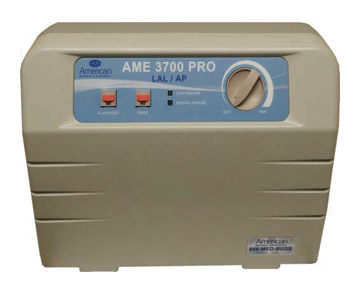

  Manually Controlled Pump Unit
Power switch:
The switch is on the right side of the unit. Turn ON/OFF the power, the unit will start/stop operation.
control
Pressure-selector knob:
Turn the knob from the soft to firm position to select a pressure value
Pressure-selector touch pad:
There are seven pressure levels on the touch panel, providing options of pressure value.
Normal Pressure LED:
Indicates the pressure has reached the set level.
Low Pressure LED:
Indicates the pressure is below the set level. The alarm will turn on at the same time.
Cycle Time-selector touch panel:
Select a desired alternating cycle time from the touch panel. The cycle time value can be 10, 15, 20 or 25 minutes. There are two LEDs for each time value.
Alarm Reset:
The alarm will turn on when the Low Pressure LED is on. To mute the alarm, simply press the reset button. The alarm LED will flash. Re-Press the reset button to reactivate the audible alarm.
Static I Alternating Control:
Sets the air mattress in static mode or alternating mode
Auto Firm:
Sets the air mattress to auto inflation mode.
*Your controller may or may not include all of the functions listed

  Installation

1.

Place mattress flatly on the bed frame. The inflation tube should be towards the foot end. control
2. Cover with a cotton sheet to avoid direct skin contact & reduce friction (not included).
3. Hang the pump unit on the foot end of the bed frame and make sure that it is stable.

4.

Connect the inflation tubes from the mattress to the controller's inflation ports. Make sure they are properly attached and not leaking.
NOTE:
Make sure the air hoses are not kinked or tucked under the mattress. Also check to ensure the CPR valve is properly attached.

5.

Plug the power cord into an electrical outlet with grounded AC power. This product should be grounded. The power cord has a grounding wire with a grounding pin. The three wire plug must be plugged properly into an outlet and grounded as shown in the Grounding Instructions section.

NOTE:
Before inserting the plug into the outlet, make sure the voltage is compatible. Also make sure this product is well grounded.

6.

Turn on the power by pressing the power switch on the right side of the control unit. Proceed to the Operation Section

7.

Make sure to disconnect the control unit by unplugging the power cord when it is not in use.

  Operation
1. Turn on the power. The power and Low Pressure LED will come on. The control unit starts to pump air into the mattress. The alarm will beep and it's LED will come on to alert that pressure is low. Press the Alarm Reset button to mute the alarm, and it's LED will continue to flash. control
2. When the pressure reaches the preset level by factory default, the normal pressure LED will come on, and the Low Pressure LED (and the alarm) will turn off If the Low Pressure LED (and the alarm) doesn't go off, please contact American Medical Equipment for equipment examination. Note: During normal operation, there may be a leakage when the Low Pressure LED comes on or the alarm sounds. Please refer to the troubleshooting section.
3. Turn the pressure-selector knob to adjust the pressure from the soft to firm position. (approximate pressure range is 20 to 50 mmHg) Note: For suitable pressure, please refer to the previously described hand check procedure.

4.

The unit is preset in alternating mode and it's cycle time is set at 10 min / 60Hz or 12min / 50Hz Press the static button to set it in static mode, and the Static LED will come on. The pump will enter static mode after it completes the last alternating cycle time. Press the static button again to restart the alternating function.

NOTE: Press the static mode button from the touch panel to provide a firm surface that makes it easier for the patient to transfer or reposition. The static mode can support the patient by keeping the mattress from bottoming out when the patient is in the sitting position.

training

  AVAILABLE LITERATURE
3700 low air loss mattress ame 3700 Low Air Loss and Alternating Pressure mattress System AME3700S Sell Sheet CLICK HERE
AME3000 Sell Sheet AME3000Sell Sheet AME3700S Brochure CLICK HERE
venturi owners AME3700S User Manual CLICK HERE
Click here to download Adobe Acrobat Reader.



  TECHNICAL SPECIFICATIONS
Medical Equipment Class I - IPXO - AP/APG NO - Type BF
Applied Part Mattress
Power Supply AC 120V/60Hz,10W 1A
Pressure Range 10 - 50 mmHg for Model 3700 PRO
10 -70 mmHg for Model 6700 MAX
Cycle Time 12min/50Hz,10 min/60Hz for Model 3700 PRO
10,15,20, 25 min, selectable for Model 6700 MAX
Dimensions 26.0 x 13.0 x 8.0 em
10.2 x 5.1 x 3.1inches
Weight 1.5 kg
3.31bs.
Environment
Requirements

Temperature:

Operation 50°F- 95°F
Storage 59°F- 122°F
Shipping 59°F-158°F

Humidity:

Operation 20% - 80% non-condensing
Storage 10% - 90% non-condensing

Safety Standards

UL, c-UL, CE

© American Medical Equipment - 2013. All Rights Reserved.
