SVED™ Wound Treatment System is a Negative Pressure Wound Therapy (NPWT) is a portable suction device that is AC-powered with battery backup for up to 18 hours that provides localized negative pressure.

This device is indicated for patients who would benefit from vacuum assisted wound closure and continuous irrigation of a wound site by controlled delivery of topical wound treatment solutions* over the wound bed.

The SVED™ is designed for use with ITI's proprietary black and white polyurethane foam dressings, canister and adhesive polyurethane drapes. This device is designed for use with continuous irrigation to a wound with sterile saline or other applicable topical solutions. Negative pressure can be applied to assist in the removal of infectious materials and other fluids prior to, during and after irrigation.

SVED 600 NPWT System from American Medical Equipment
   Key Product Features
  • Open cell hydrophilic foam dressing
  • Wound irrigation feature provides therapy options and patient comfort
  • SpeedConnect™ for ease of application
  • One - touch pressure adjustment with lock outs
  • Visual and audible dressing leak alarms
  • Automatic shutoff prevents canister overfill
  • Easy to carry with provided carry case
  • Internal battery that lasts up to 18 hours
  • Very quiet
  ASSEMBLY
1. Ensure that an ITI Fluid Collection Canister is properly inserted in the receptacle located on the side of the therapy unit (see Fig 4). The Canister should “snap” into place and lock. The canister release button may need to be depressed to permit canister insertion. NOTE: Always use a new canister with a new patient. figure4
2. Inspect the adhesive tubing flanges to ensure that they are properly connected to the ITI Foam Dressing (a) and that the connections are well sealed.
3. Connect the distal end of the SpeedConnect™ Tube with the blue tapered connector to the Patient port of the Canister (see Figure 5). Gently twist and push the connector on just enough to secure and seal it. Also, make sure that the clamp on the SpeedConnect™ Tube is open (see Figure 6). figure5
4. Plug the therapy unit’s A.C. Adapter into a suitable 120 VAC, 60 Hz, 3-prong outlet. Insert the power plug into the Power Jack on the side of the Therapy Unit (see Figure 6).
5. Verify the dressing application is correct, the tubing is connected, the Dressing Suction Tube clamp is open and the Dressing Irrigation Tube clamp is closed. figure6
6. Begin therapy.

  OPERATING INSTRUCTIONS

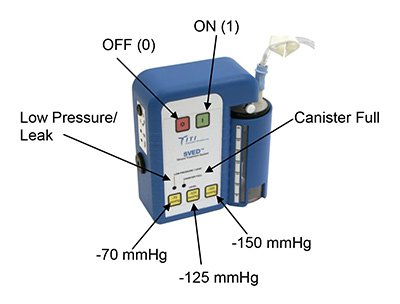

1. The ON and OFF buttons are located on the front top of the control panel. The ON and OFF buttons control the application of power to the therapy unit. svedon
2. Verify the dressing application is correct, the tubing is connected, the Dressing Suction Tube clamp is open and the Dressing Irrigation Tube clamp is closed.
3. Place the therapy unit in an upright position as level with the wound as possible. The device can be placed on a table, hung from a foot board or attached to an I.V. pole using the I.V. Pole/Bed Hanger adapter.
4. Hang irrigation bag on the I.V. pole at a level that is higher than the level of the wound.
5. Press the ON button. All LED indicators will illuminate for 1 second during the power-on self-test, after which, the ON button will steadily light green.
6. Dressing should collapse indicating the presence of vacuum. Once dressing integrity is verified, open the Dressing Irrigation Tube and adjust drip to a rate appropriate for desired therapy.
7. Carefully check dressing for vacuum or fluid leaks and repair with additional Polyurethane drape material as needed.
8. The SVED® Wound Treatment System should be operated at least 22 hours out of every 24 hour period. Remove the Svamp® Dressing if therapy is terminated or is off for more than 2 hours in a 24 hour period.

  USAGE TRAINING
1. Inspect the dressing frequently to ensure foam is collapsed and irrigation therapy is being delivered in a consistent manner. Monitor periwound tissue and exudate for signs of infection or other complications

  NPWT System Videos
CLICK HERE TO VIEW TECH AND BUTTONS VIDEO

CLICK HERE TO VIEW ITI-NPWT-System-Introduction
CLICK HERE TO VIEW ITI-NPWT-System-As-A Tool

training

  AVAILABLE LITERATURE
sved slick SVED wound treatment SVED™ One Page Slick CLICK HERE
sved sved SVED™ AME Brochure CLICK HERE
venturi owners AME SVED™ User Manual (703 kb) CLICK HERE
sved clinical sved Overview for proper use of the ITI systems. CLICK HERE
sved sved SVED™ Dos and Don'ts CLICK HERE
Click here to download Adobe Acrobat Reader.

















  TECHNICAL SPECIFICATIONS
SVED™ Wound Treatment System Dimensions: 7.5 x 2.5 x 6.8 in. (19.05 x 6.35 x 17.27 cm)
Weight: 1.9 Lbs (862 g)
Therapy Settings: -70, -120 & -150 mmHg
Canister Volume: 300 cc
Battery Duration (Fully Charged): approximately 12 hours
External Power Supply Input: 100-240 VAC, 50-60Hz, 700 mA
External Power Supply Output: 15 VDC, 2 Amps
Patient & Enclosure leakage Current: < 100 Microamps
Temperature Range: 10 o F (-12 o C) to 110 o F (43 o C)
Relative Humidity Range: 20 – 95% Non-condensing
Expected useful life of SVED® Wound Treatment Unit.: 3 years
Intermittent-pressure setting Occlusive Portable Prepares wound bed
