The American Medical Equipment AME4700ROT Rotational/Low Air Loss Mattress combines True Low Air Loss with Full Body Lateral Rotation capabilities in a complete mattress replacement system. The purpose of the AME4700ROT True Low Air Loss Mattress System is to provide a full body lateral rotation and a therapeutic benefit to patients at risk or suffering from pressure ulcers.

The microprocessor controlled blower unit features up to a 40º “Full Turn”, and “Right Turn” modes of rotation. These rotation modes have a minimum cycle time of 3 minutes and a maximum of 90 minutes. The “Turn & Hold” feature allows the caregiver to rotate the patient to the left or right to help administer the patient. Additional features include: “Static” for stationary low air loss therapy, “Auto Firm” for rapid inflation and easy patient transfer and “Lockout” to maintain caregiver settings without accidental interruptions.

American Medical Rotation Lateral Rotation

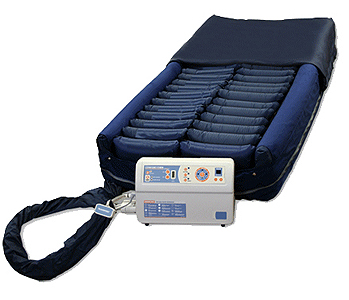

4700surface The AME4700ROT is a domestic mattress with 20 interchangeable air cells that are incorporated with a side support bolster which cradles the patient when rotating. The entire system is contained in a durable woven base, and the polyurethane coated top cover is waterproof yet highly vapor permeable. The entire system is portable and fits most standard medical bed frames. Additional features include: "Static" for stationary Low-Air-Loss therapy, "Fowler" to boost seat inflation when the head is elevated, "Auto Firm" for rapid inflation and easy patient transfer, "Lockout" to maintain caregiver settings without accidental interruptions, "Low Pressure" and "Power Failure" audible / visual alarms, and "Self Diagnostic Check" to quickly assess all switches and sensors for proper calibration & operation.

  KEY PRODUCT FEATURES
  • True Low Air Loss
  • Full body lateral rotation
  • Dual Modes of Therapy: Static Low Air Loss and Continuous Lateral Rotation w/ Low Air Loss
  • Turn & Hold feature allows the care giver to rotate the patient to the left or right
  • Variable rotation cycle times from 3 to 90 minutes
  • Replaces existing mattress
  • Medicare Approved: EO277

  Set Up Demonstration

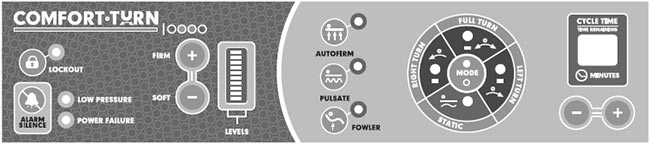

AME4700 Panel


  ASSEMBLY
1. Remove standard mattress from the bed.

   Click on diagram to see larger viewcallout

2. Replace standard mattress with the AME4700ROT mattress. (Be sure air tubing is at the foot end of the bed.)
3. Strap air support mattress to bed frame on all four sides. .

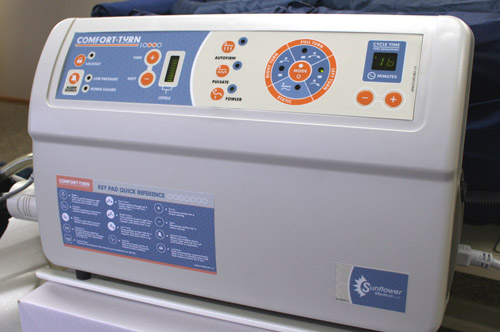

4. Place control unit on the foot board of the bed using the two retractable hooks located on the back of the unit. (If no foot board is available, put blower on the floor away from traffic.) To avoid blocking the air intake, DO NOT place control unit on its back.
5. NOTE: (110V unit ONLY) Plug unit into grounded 110V A/C outlet.
NOTE: (220V unit ONLY) Plug unit into grounded 220V A/C outlet.
6. Press the Auto Firm button for quick inflation.
7. Place the patient on the bed after inflation to insure the air cells do not become twisted or kinked.
8. Press the Auto Firm button for quick inflation


training

  AVAILABLE LITERATURE
4700 slick 4700 Sell Sheet AME 4700ROT Sell Sheet CLICK HERE
AME 4700rot brochure AME 4700ROT Brochure CLICK HERE
extricare brochure ame 4700 AME4700 Low Air Loss and Lateral Rotation Therapy Brochure CLICK HERE
operator manual AME4700ROT Operating Manual CLICK HERE
Click here to download Adobe Acrobat Reader.
  TECHNICAL SPECIFICATIONS

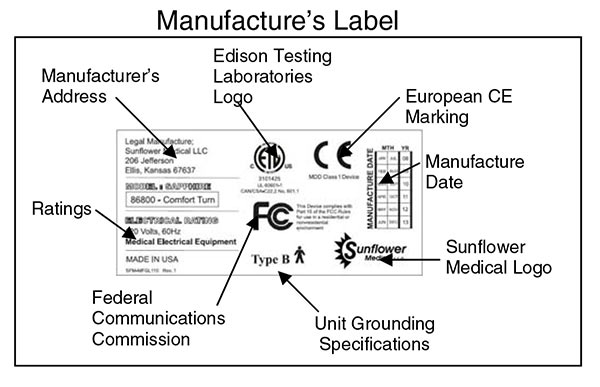

AME4700 Label

Standard Features

  • Blower Unit Weight = 11 lbs (4.98 kg)
  • Blower Unit Height = 10.5” (26.67 cm)
  • Blower Unit Width = 16” (40.64 cm)
  • Blower Unit Depth = 6” (15.24 cm)

Electrical Characteristics

  • Rated Voltage
  • Rated Frequency
  • Rated Input Power
  • Fuse Rating
  • Power Failure Alarm

110V Control Unit

110 Volts
60Hz
120 Volts
.31mA 250V 5A 250V
Yes

220V Control Unit

220 Volts
50Hz
230 Volts
2.5A 250V
Yes

Therapeutic Features

  • Low Air Loss = Yes
  • Pulsate Therapy = Yes
  • Lateral Rotation = Yes
  • Fowler Positioning = Yes

Patient Characteristics (for standard size)

  • Max. Patient Height - 78” (198.12 cm)
  • Max Patient Width - 26” (66.04 cm)
© American Medical Equipment - 2013. All Rights Reserved.
