Hot Spot LTC40
  • Product Overview
  • Operational Instructions
  • Downloads
  • Technical Specifications

For a decade, hospitals and nursing homes found foam mattresses were a better choice than the now obsolete innerspring mattress. Customers also realize that dynamic air mattresses are still necessary for advanced stage wound treatment due to their conforming and pressure distribution advantages. Unfortunately, to make air reactive to patient movement requires expensive and complicated powered air systems.

Hence, most customers routinely buy foam mattresses for prevention and then rent powered air systems for wound treatment. AME is proudly leading the charge to eventually make preventative foam mattresses next in obsolescence with our introduction of the LTC40 System.

SVED 600 NPWT System from American Medical Equipment

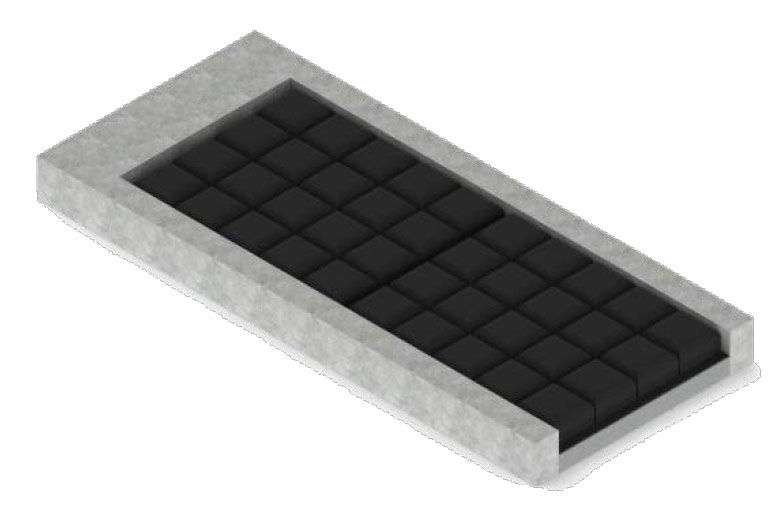

The LTC40 is AME’s most exciting development in the quest to build the world’s best mattress replacement system. Uniquely, American Medical Equipment combines unparalleled (ROHO technology air cells) in a full thickness, non-powered and foam‐free mattress system. Although, the LTC40 is an advanced treatment system and eliminates the majority of rental costs; the LTC40 is available to customers at a price comparable with prevention foam mattresses.

    Key Product Features
  • Helps heal advanced stage (III & IV) ischemic ulcers.
  • Friction and shear relief surface.
  • Zoned. Four sections each 20" x 34" / 51 cm x 86 cm
  • Adjustable. 3.5" (8 cm) high air cells can be adjusted to the patient's body shape and size.
  • Non-powered. Requires no external power source.
  • Drainage holes pull fluids away from incontinent client.
  • Durable neoprene rubber is flame-resistant and can be easily cleaned.
  • Repairable. Extends overall life of mattress.
There are currently no operating instructions for this product.
FLOWT pressure mapping Flowt Pressure mapping Pressure Mapping Report CLICK HERE
LTC Sell Sheet AME3000Sell Sheet AME LTC40 Brochure CLICK HERE
Click here to download Adobe Acrobat Reader.
  High Quality Stretch Top and Durable Bottom Covers
  • 4‐way stretch, zippered top cover allows full immersion
  • Waterproof, breathable & vapor permeable
  • Easy to wipe down and clean between patients
  • Waterproof, rip‐stop durable bottom cover

ROHO® Air Technology Therapeutic Components

  • Clinically appropriate for advanced wounds
  • 40 Micro‐conforming ROHO® AIR cells
  • (More Cells= Better Therapy)
  • Continuous, dynamic pressure changes
  • Immediately reactive to any position or movement
  • Easily adjustable to individualize therapy/comfort
  • Pressure, friction and shear relief
  • Non‐powered (maintains therapy in power outages)
  • Stays cool & does not retain/insulate heat (unlike foam)
  • Extremely comfortable; excellent pain management
  • 4” support base made of high performing fiber material
  • Firm or raised side edges for patient safety or rehab
  • Mold/mildew resistant, hypoallergenic
  • Non‐toxic, non‐flammable
  • Does not retain or emit odors or absorb liquids
