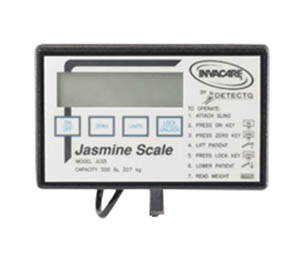

This patient scale can be used with Jasmine lifts. It comes with digital display to accurately and easily weigh patients during daily transfers.

liftscale
  KEY PRODUCT FEATURES

Digital Lift Accessory

  • Digital scale JLS5 for use with Jasmine lifts:
  • Accurately weigh up to 500-lbs,
  • Liquid Crystal Display,
  • 9V battery power source.
Use in conjunction with the Powerlift 600MOB
   PARTS
control
WARNING:
The Jasmine Scale MUST be installed in the orientation shown in FIGURE 1. Otherwise, injury may occur.

  KEYPAD FUNCTIONS
JASMIN
KEY INDICATOR DISPLAYED INDICATOR LOCATION DEFINITION
On / Off OFF Center of Display Window Pressing this key will apply power to the scale and turn the unit on. When the scale is already on, pressing the button will turn the unit off.
Zero Zero Lower Left Corner of the Display Window Pressing this key when the scale is on will reset the weight shown in the display window to zero.
Units lb. or kg. Upper Right Corner of the Display Window The function of this key is to change the unit of measurement from pounds (lb) to kilograms (kg).
Lock / Unlock Lock Lower Right Corner of the Display Window This key is used to LOCK or UNLOCK a weight value in the display window. NOTE: Weight displayed is a STORED weight and not the current weight when the key is used in the lock position.
N/A LO BAT Center of Display Window Indicator is shown in the display window to notify when battery is low.

  Initialization of the Scale

NOTE: If the scale is installed incorrectly, the swivel bar or cradle attachment will not rotate freely, limiting patient movement during transfer.

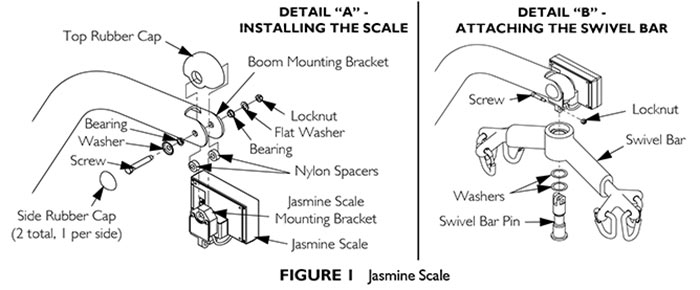

Step 1: Align the holes in the top rubber cap, the holes in the Jasmine scale mounting bracket and the nylon spacers with the holes in the boom mounting bracket. Refer to Detail “A” for hardware orientation.
Step 2: Attach the Jasmine scale to the boom mounting bracket with a screw, washer, bearings, flat washer and locknut. Refer to Detail “A” for hardware orientation.

NOTE: Ensure the shaft of the screw passes through both sides of the boom mounting bracket. Install the Swivel Bar or Cradle Attachment
NOTE: For this procedure, refer to FIGURE 1, Detail “B”.
NOTE: The cradle attachment attaches in the same way that the swivel bar attaches to the Jasmine Scale.

1. Put the washers on the swivel bar pin.
2. Insert the swivel bar pin through the swivel bar.
3. Align the holes in the swivel bar pin with the hole in the bottom of the Jasmine scale mounting bracket.
4. Attach the swivel bar pin to the Jasmine scale with a screw and locknut. Tighten securely.
5. Snap a side rubber cap into place on each side of the boom mounting bracket

  Weighing the Patient

NOTE: The display will indicate the last weight that was measured. The word ʺLOCKʺ will be seen in the display box.

NOTE: The ZERO key is pressed in order to avoid capturing the weight of the sling and the hardware. If the ZERO key is not pressed the weight of the sling and the weight of the hardware will be included in the weight displayed. NOT ZERO‐ING OUT WILL GIVE A FALSE READING OF THE USERʹS TRUE WEIGHT.

1. Press the ZERO key. When the ZERO key is pushed the following will happen:

  A. The scale will reset to zero and the word ʺZEROʺ will appear in the display.

B. The lock function will then be turned off and the word ʺLOCKʺ will disappear from the display. NOTE: The scale is now active and continually updating the weight display.

2. Place the patient in the sling. For patient placement instructions refer to Operation in the Jasmine Patient Lift Owner’s Manual, Invacare P/N 1150704.

3. Activate the lift mechanism to raise the patient until they are completely supported by the lift. For patient lifting instructions, refer to Lifting the Patient in the Jasmine Patient Lift Owner’s Manual, Invacare P/N 1150704.

4. Note the weight display.

5. When the weight display becomes stable press the LOCK button to lock the weight display. This will be indicated by the word ʺLOCKʺ appearing in the display window.

NOTE: Should it be necessary to unlock the weight while the patient is still supported by the lift, the UNLOCK button may be pressed. The weight will unlock and the word ʺLOCKʺ will disappear from the display window. The weight value will then be updated. Once the weight becomes stable the weight can be locked again by pressing the LOCK button.

NOTE: Stable being defined as the weight fluctuating ± two tenths of a pound. For example, a patient weighing one hundred lbs the scale will fluctuate between 99.8 and 100.2 until the LOCK key is pressed. Fluctuation of the weight displayed is normal as noted above. Press the LOCK button to lock the weight.

NOTE: The UNITS button can be pressed to toggle between units of pounds and kilograms. This is indicated by lb or kg appearing in the display window.

6. The lift may now be lowered and the sling removed from the patient.

NOTE: The patientʹs weight will continue to be seen in the display window. The display will turn off automatically after a two minute period of non‐use [no changes in weight exceeding five pounds (2 kilograms)]. You can NOT adjust the time delay for automatic shut off. After the display has turned off, the weight may be recalled by pressing the ON/OFF button. The unit can be turned off by pressing the ON/OFF button a second time

training

  AVAILABLE LITERATURE
lift scale Liftscale 600 Brochure Liftscale 600 Brochure CLICK HERE
jasim LIFTSCALE 600 Liftscale 600 Brochure CLICK HERE
AME3000 Sell Sheet AME3000Sell Sheet Jasmine Scale Operating Manual CLICK HERE
Click here to download Adobe Acrobat Reader.
Weight Range: Up to 500 lbs (226.7 Kg)
Resolution: +/- 0.2 lbs (0.1 Kg)
Display: Liquid Crystal Digital
Automatic Power Down: Two minutes
Size: 5-3/4 L X 3-5/8 W X 4 H
Weight: .55 lbs
Power: 9-Volt Alkaline battery (included)
Battery Life: Approximately 1500 readings
Temperature Range: 50° To 104°F (10° To 40°C)
