The Bed Scale 1000 employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. Four (4) identically matched transducers are strategically placed to ensure an accurate representation of the patient's weight regardless of weight distribution.

The Patient's weight is displayed on a 16 character dot matrix liquid crystal display with L.E.D. backlighting. Patient weight may be viewed in both POUNDS and KILOGRAMS with the push of a button with a displayed resolution of 0.1 #/Kg (100 grams). The 1226 also features a WEIGHT CHANGE mode which makes it convenient to monitor the patient's weight relative to ZERO in order to observe variations in weight. A FREEZE feature is provided to give the added convenience of being able to adjust the patient's comfort by adding a pillow, book or adjusting the bed without effecting the patient's displayed weight

liftscale

Scale is used with the Baribed 1000 BED1000

  SYSTEM OPERATION

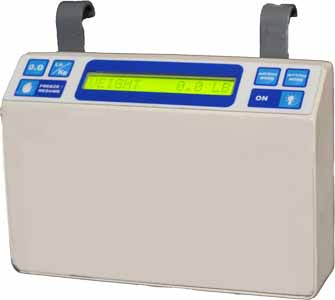

scalefront
  SYSTEM ZERO
Note: When Power is first applied to the system, the display will read "POWER INTERUPTED" - "PRESS FREEZE. This indicates that there was an interruption in power and to check the patient weight. To reset the system press the
"FREEZE/RESUME" button.

  BUTTON FUNCTIONS
ZERO After the patient has been placed on the bed, simply press and release the " ON " button. The displayed message will read "PLEASE WAIT - HANDS OFF". Do not touch the bed. After a few seconds the patient's weight will be displayed.
ZERO

The WEIGHT CHANGE mode is used to monitor the patient's weight relative to ZERO.

1. Press the " WT CHG " button. The display will read" WT CHG=(patient weight)".

2. Press the "0.0 " button to set the relative zero.

Any variation in weight will now be viewed as a "+" or "-" figure relative to ZERO. Pressing the "WEIGHT" button will switch back to the WEIGHT MODE allowing you to view the patient's total weight again.
NOTE: When you reset the system zero, the WEIGHT CHANGE MODE will also be reset to zero.

ZERO

1. Press the " FREEZE/RESUME" button. The display will read " FREEZE = (patient weight) ".

2. Press the " FREEZE/RESUME" button. The display will read " FREEZE = (patient weight) ".

While in the FREEZE mode, the "WEIGHT" and "WT/CHG" keys will allow you to manually adjust the displayed weight reading in the event of a known error. Simply press the "WEIGHT" and "WT/CHG" keys to make the proper corrections.
NOTE: If FREEZE Mode is left unattended for morethan 3 minutes, display will read " LEFT IN FREEZE - REFER TO MANUAL". You must press the " FREEZE/RESUME" button to exit this mode.

ZERO Toggles between POUNDS and KILOGRAMS display modes.

  MOVING BED and PATIENT
ZERO

If it becomes necessary to move the Bed and/or Patient while the scale system is active use the following procedure:

1. Press the " FREEZE/RESUME" button. The display will read " FREEZE = (patient weight) ".

2. Make all necessary adjustments to bed and/or patient.

3. Press the "FREEZE/RESUME" button once again to resume normal weight monitoring.


  LOSS OF POWER



If it becomes necessary to remove the batteries while the scale is in use:

1. Note the displayed patient weight before removing batteries.
2. When the power is restored -
The display will toggle the message " POWER INTERUPTED" - "PRESS FREEZE".
4. Press the "FREEZE/RESUME" button to WAKE-UP the readout. If the weight reading is correct the system is
ready.
5. If the displayed reading is not correct:
a) Press the "FREEZE/RESUME" button. The display will read "FREEZE = (patient weight)"
b) Use the "WEIGHT" and "WT/CHG" keys to ramp the displayed value to the correct weight.
c) When done press the "FREEZE/RESUME" button once again to save the correction and exit to the normal
weighing mode. If you make a mistake, press "ON" to abort your changes.
IMPORTANT: IF YOU DO NOT KNOW THE CORRECT PATIENT WEIGHT YOU MUST
REMOVE THE PATIENT FROM THE BED AND RE-ZERO THE SYSTEM.


  SYSTEM CALIBRATION and MAINTENANCE

IMPORTANT : The following calibration procedure should only be performed by qualified service personnel. The 1229B load cell, itself, has no user serviceable components and should not be tampered with for any reason.
Recalibration is generally not required, but should be checked periodically to ensure accuracy.

ZERO

ZERO

ZERO

ZERO

ZERO

INITIALIZATION and CALIBRATION PROCEDURE :
I. Initializing
Press and Hold the "Weight Mode", "Wt/Chg" and "On" Simultaneously.
The Display will read "Hold to Init" and count down from 9 to 0 (zero).
Release the buttons and the display should read "Initializing".
When display returns to normal the system is Initialized
II. Calibration
1. Press the"FREEZE/RESUME" button to enter the FREEZE MODE.
2. When the display indicates "FREEZE = (weight)", press and hold the "LB/KG" button. The display will
read "CAL" as the right hand digit counts down to enter the CAL MODE.
3. When in the CAL MODE, the Display must be connected to the Bed. A Number will appear on the right
side of the display. This number is the "Offset" of the bed. This number should be positive and between 40 and 100 Pounds with bed ready for patient (but no patient in the bed). On PCB1857C2, use R13 to adjust the Offset to proper range (+40 to 100 lbs). Then Press Zero.
4. Place a known weight on to the weighing surface and compare it to the displayed reading.
5. Use the "WEIGHT" and "WT/CHG" keys to make any necessary adjustments to the displayed value.
The displayed value should be within 0.1% of the calibrated weight plus or minus 1 digit of reading.
6. Press "FREEZE/RESUME" to save the changes or "ON" to abort changes.


  SYSTEM CARE and CLEANING

CLEANING and DISINFECTING:
The readout and transducer housings for the 1229B Scale System are made of aluminum and steel with a painted surface. You need only exercise caution when cleaning the display window as this is made of clear polyester . We recommend mild soap and water for general cleaning.

training

  AVAILABLE LITERATURE
scale BARI 1000 Brochure BARI 1000 Brochure CLICK HERE
icon Operator's Manual CLICK HERE
AME3000Sell Sheet BARI 1000 Brochure CLICK HERE
Click here to download Adobe Acrobat Reader.
  TECHNICAL SPECIFICATIONS
Weight Range -
   Bed and Patient Display Resolution
1500 LB's / 680 Kg's
   0.1 LB's / 0.1 Kg's (100 grams)
Accuracy 0.2% +/- 1 digit of reading
Display Type 16 character dot matrix L.C.D.
Display Time Auto power-down 60 sec.
Damping Automatic digital filter
Power Supply 6 - "D" cell Alkaline Batteries
Warranty

1 year Parts & Labor
