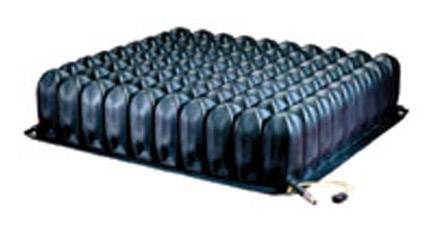

4” (10 cm) interconnected Air cells provide exceptional therapeutic properties. Dual compartments can be adjusted independently to increase positioning and stability for either side-to-side (to adjust for pelvic obliquities) or front-to-back control (to adjust bucket or tilt angle).

Medicare Code: E2622 and E2623

AME1400

Positioning.
The Cushion allows for quick, simple position selection for every user while seated. By pushing the knob to the open position, you can adjust the user's posture to the desired sitting position. By pushing the knob to the closed position, you can maintain the desired sitting posture for maximum function.

Skin Protection.
Based on thirty years of research and client experience, our patented ROHO DRY FLOATATION® technology provides unparalleled performance in facilitating blood flow by fitting, matching and tracking the shape of a person.

Stability.
The Cushion offers a new level of stability never before found in an air floatation cushion. Stability is enhanced by locking the air into place in each of the four compartments through the simple use of the ISOFLO® Memory Control, minimizing side to side or front to back motion.

  KEY PRODUCT FEATURES
  • Non-powered pressure re-distribution wheelchair cushion.
  • Interconnected air cells are custom inflated to distribute peak pressure areas.
  • Soft, flexible cells react to any movement to create a dynamic therapy environment.
  • Each air cell has six degrees of movement to counteract pressure and shear forces.
  • Waterproof, vapor permeable top and bottom cover (not shown).
  • Portable and lightweight to be used in wheelchair, Geri-chair, etc. .
1.

Remove Product from Packaging Congratulations. You now own a ROHO cushioning product designed and manufactured so you can achieve the highest possible level of performance and personal satisfaction.

figure4
2.

Check Items. Your product should have come with the cushion, cover, manual, and hand-operated air pump. NOTE: Cover (included) is recommended for use, but omitted from these instructions for graphic presentation. Please use the yellow rope handle to lift and carry your cushion.

figure4
3.

Place the Product . Place your ROHO cushion on the chair, making sure it is centered and right side up, with the air valve in the front left corner.

figure4
4.

Open the Air Valve . Turn valve counter-clockwise to open.

figure4
5.

Get Pump. The pump has a flexible rubber hose.

figure4
6.

Fit Pump Hose Over Valve. Slide the collar of the pump over the valve.

figure4
7.

Pump Air Into Cushion. Inflate cushion until it begins to slightly arch upward.

figure4
8.

Remove Pump and Close Valve. Remove the pump and quickly close the air valve by twisting in a clockwise direction. To avoid any loss of air, you may also close the air valve prior to removing the pump hose from the valve.

figure4
9.

Place Person On Chair. Gently place person on chair, making sure the ROHO cushion is centered underneath.

figure4
10.

Settle Person. Place the individual on the cushion in his/her normal sitting position.

figure4
11.

Position Hand for Adjustment. Slide your hand between the cushion surface and the person's bottom and feel for the lowest bony prominence.

figure4
12.

Properly Position the Hand. Usually, the lowest bony area will be the ischial tuberosity or 'sit bones'. If you are not sure, lift the person's leg slightly and you should feel the bony area move in your hand.

figure4
13.

Begin Releasing Air. Rotate valve counter clockwise to begin letting out air, while keeping your hand under the person's sitting bones.

figure4
14.

Cushion Lowers. Allow cushion to lower until you can barely move your finger tips (approx. ½ inch or 1.25cm)

figure4
15. Close Valve. Rotate valve clockwise to close. figure4
16.

Check Cushion Height. Wiggle fingers to make sure there is approximately ½ inch of air between person and bottom. Caution: Avoid 'bottoming out'. The cushion is most effective when there is air between all parts of the person and the chair. If the person has bottomed out, please add air and repeat the process.

figure4

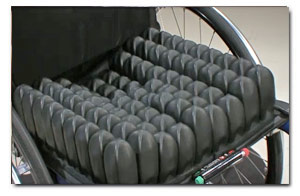

  ROHO® QUADTRO SELECT® Cushions Set Up & Adjustment Instructional Video

arrowSet Up & Adjustment video


training

  AVAILABLE LITERATURE
roho AME ROHOWC 18 Sell Sheet AME ROHOWC 18 Sell Sheet CLICK HERE
AME3000 Sell Sheet AME3000Sell Sheet

AME ROHOWC18 Owner's Manual

CLICK HERE
Click here to download Adobe Acrobat Reader.

CONSTRUCTION:
Flame Resistant, Neoprene Rubber
SIZES:
Wide Range, to fit chair widths 12" to 26.75"/30 cm to 68 cm (custom sizes available)
WEIGHT:
Varies by size, approximately *3.25 lbs./1.5 kg for HIGH PROFILE, *3 lbs/ 1.4 kg for MID PROFILE and *2.5 lbs
/1.1 kg for LOW PROFILE (based on 16x16 cushion)
WARRANTY:
24-Month Limited Warranty
WEIGHT LIMIT:
Unlimited

U.S. MEDICARE CODE:
E2622/2623
