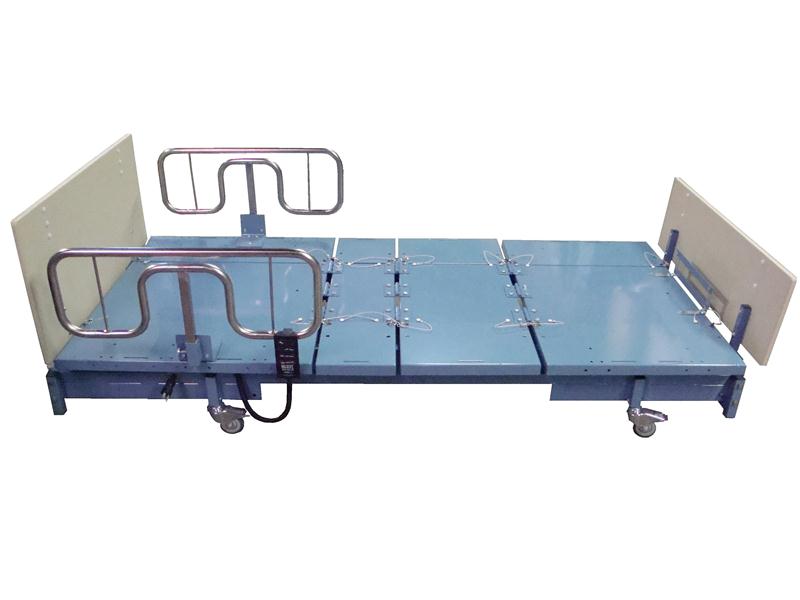

The Low Bed 800 was specifically designed for Long Term Care, Rehabs and Nursing Home use. This bed offers two widths in one easy-to-operate bed unit. The slide feature can transform the width of the bed from 48 inches to 38 inches. This dual function beds can be used as a gurney for easy transfer through doorways and emergency evacuation.


Featuring Linak™ motors which allow for smooth and quiet dynamic movement without disturbing a partner or surrounding residents. The Foot section does not pitch down, but plateaus to reduce edema of lower extremities. Low height full electric beds have DC motors for the head section, foot section and overall height. Extra weight capacity bed features multiple positions, and independent head and knee gatch for personalized positioning. All electronics are completely enclosed, and fully grounded with hospital grade 3 prong heavy duty plug and cord. Electronics and motors UL listed, 115 volts. Remote features 8 button control for all functions, is low voltage, and has a high impact resistant case. Optional bed mounted trapeze, heavy duty side rails, and integrated digital scale are also available.
bigboy bigboy bigboy
  • Weight Capacity: 1000 lbs.
  • Multiple Positions Include: Trendelenburg, reverse Trendelenburg, cardio chair.
  • Independent head & knee gatch for personalized positioning.
  • Foot section does not pitch down but plateaus to reduce edema of lower extremities.

Mattress Features:

The Comfort Mattress features multiple layers of foam to provide a 6” mattress that has a density and other qualities to provide patient comfort and pressure reduction. The mattress comes with a durable water resistant cover, and can be placed directly on the hospital bed frame.

  • Ventrex ticking (#1 leading hospital mattress ticking in America).
  • Anti-bacterial, anti-fungal, fluid resistant.
  • Extremely low vapor transmission.
  • Mattress is considered pressure reducing group 1 by medicare’s standards.
  • Mattress is guaranteed to crush no more than 50% to prevent bottoming out.
  • Before adjusting bed, check that nothing is under or near bed. Keep children and pets away from the bed to prevent injury.
  • Keep bed in lowest position except for providing care (bathing, clothing changes, etc.) Entering or exiting a raised bed could result in falls or injury.
  • Injury may result from improper use of bed accessory manufacturer for proper use instructions.
  • Bed power cord has a hospital grade 3-prong grounding plug. Connect only to a hospital grade 3-prong outlet. Do not defeat grounding safety feature by using a 3-prong to 2-prong adapter. If necessary, have outlet ground reliability checked by a qualified electrician.
  • The motor control box does not contain serviceable parts. Unplug the bed if there is a malfunction. Refer servicing to qualified personnel.
  • Unplug power cord from wall outlet before performing any maintenance or service to the power box.
  • Unplug the power cord of electric beds before cleaning with water based solutions.
  • TO ADVOID POSSIBLE INJURY OR DEATH - use a mattress thick enough and wide enough so that the gap between the top of the mattress and the bottom of the side rail is small enough to prevent a patient from getting their head between the mattress and the side rail and possible suffocating.
  • CASTOR LOCKS INCREASE BED STABILITY and resident safety, decreasing the liability of a nursing home.
  • POSSIBLE FIRE HAZARD - Pendant must be attached at the foot end of the bed when using oxygen-administered equipment


   EMERGENCY EVACUATION PROCEDURE - for bed models with convertible feature
  • Pull off side Velcro bolsters
  • Pull out cable extension pins
  • slide bed deck extensions in towards center of bed
  • Perform this procedure on right and left side of bed deck surface
  • Do not use harsh cleaners or solvents.
  • Follow all manufacturer directions for dilution of concentrated cleaning agents.
  • Wipe fabric clean with neutral soap suds and lukewarm water. rinse thoroughly and allow drying before return to service.
  • Hard to clean areas use soft sponge with liquid cleaner as specified on manufacturer's label.
  • To control or prevent odor on long term incontinent applications, clean 200 OX daily. Use of scented cleaner or disinfectant is recommended.
  • Most phenolic or quaternary type disinfectants can be used on 200 OX fabric. User must dilute disinfectants and germicides on accordance with manufacturer's instructions.
  • Iodophor type disinfectants (Betadine, for example) will stain 200 OX fabric.
  • 200 OX can be disinfected with 1:10 dilution of household bleach (5.25% sodium hypochlorite) as recommended by the CDC (US Health and Human Services) Weaker dilution 1:100 may be used but may not be in accordance with the CDC recommendations.
  • The materials used to manufacture 200 OX and the performance of the fabric may be adversely affected by permitting and cleaning agent to remain on contact with the fabric for a prolonged duration or a failure to adequately rinse the agent from the fabric.


extricare brochure Low Bed 800 Boy Sell Sheet Low Bed 800 Boy Sell Sheet CLICK HERE
extricare brochure baribed 600 Low Bed 800 Boy Brochure CLICK HERE
Click here to download Adobe Acrobat Reader.
  Bed Specifications:
  Deck Height: Low Position 10" High Position 24.5"
  Dimensions: 24.5" (H) x 38” (W) x 80” (L) converts to 48” (W) x 80" (L)
  Casters: Four 3" Locking.
  Warranty: 1 Year For Electrical And Mechanical Components, 5 Years For The Bed Frame.
  Mattress Specifications:
  Flame Retardant: Yes
  Weight Capacity: 1000 lbs.
  Warranty: 1 Year On Mattress And Mattress Cover.
