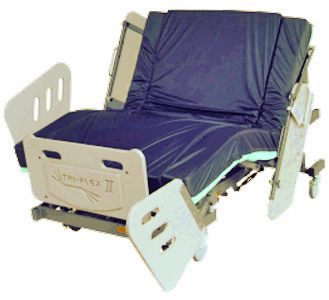

The BARIBED 1100/1200 are fully electric bariatric bed systems for patients up to 1,000 lbs. The systems allow clinicians to position patients in many positions, including trendelenburg/reverse trendelenburg. The bed platform can be extended to 48” wide for maximum comfort, and compact down for room transport.

The BARIBED 1100/1200 Deck is a "critical" 5" lower than the 19" deck of many bariatric beds, yet has the ability to adjust to a 28" deck height providing a safer, easier out of bed downward transfer for the taller patient as well.

VENTURI 400 NPWT
burke1   burke2   burke3
Durable Molded Reinforced
Plastic Head and Foot Boards
Easiest to use Menu
Driven Interface Scale
Load Cells - Positioned For The Most Accurate Bed Scale System
  KEY PRODUCT FEATURES:

Standard Bariatric Bed features:

  • Multiple Positions: Trendelenburg/Reverse Trendelenburg
  • Hi-Lo: 14" to 28"
  • Cardiac Chair Positioning
  • Independent Head & Knee Positioning
  • 3 Widths in 1 Frame 37" to 48" or 54" easy slide, expand/contract
  • Attendant Hand Control
  • Battery Back-Up
  • CPR Release Mechanism
  • Molded Plastic Head & Foot Boards
  • Solid Head Side Rails with clear Polycarbonate Windows
  • Easy Patient Egress at Foot or Side of Bed

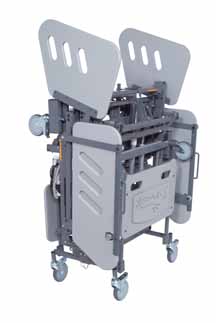

  • "Fold & Roll" 1 person delivery system
  • Weight Capacity of 1000 lbs.
  • Steel Bed Frame - 5 years, Year 1 & 2 - 100% parts. Years 3,4,5 - 50% parts (Pro-Rated)
  • 1 year parts on electrical drive components - includes drive motors, electronics and hand control pendant
  • 1 year parts on mechanical components - including casters and hardware

Optional Accessories:

  • Angle Indicators
  • Single or 3 & 4 Corner Trapeze Frame Setup
  • Impulse Drive System
  • Integrated Scale System
  • Compact Dual-Passage Assist Hand Rails
  • Fold-Down Extend-able Foot Side Rails





  Links to Online Videos (YouTube) and Demonstrations
video Bariatric Bed Training Basics

training





  AVAILABLE LITERATURE
Baribed 1100-1200 CLICK HERE
AME3000Sell Sheet Features and Specifications Brochure CLICK HERE
Click here to download Adobe Acrobat Reader.
  TECHNICAL SPECIFICATIONS

Platform Dimensions:

  • 37" Width x 86" Length
  • 48" Width x 86" Length
  • 54" Width x 86" Length
  • Frame Dimensions: 93 7/8" L 40 3/4" W Caster to Caster

Class:

  • Fully Electric Modular Electronics
  • 37" Patient Surface Width for Transport
  • 48" Patient Surface Width for in room use
  • 54" Patient Surface Width for in room use
  • UL 60601-2-38 and CE Mark

Miscellaneous:

  • Hospital Grade Plug
  • Low Voltage/High Efficiency (Low Power Consumption 1.6 amps)
  • Heavy Duty 6" x 11/4" Steer & Lock Casters
