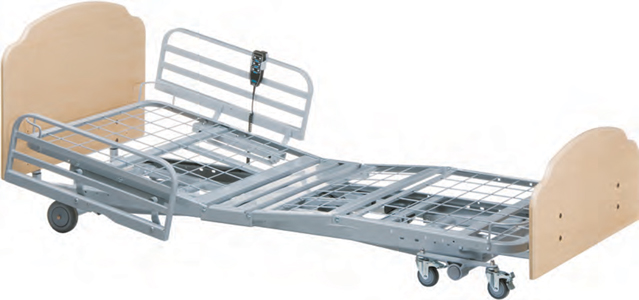

  LOW BED 500

The LOW BED 500 low beds features a travel range of 7 7/8” to 30” and offers a large range of configurations in a state of the art platform.

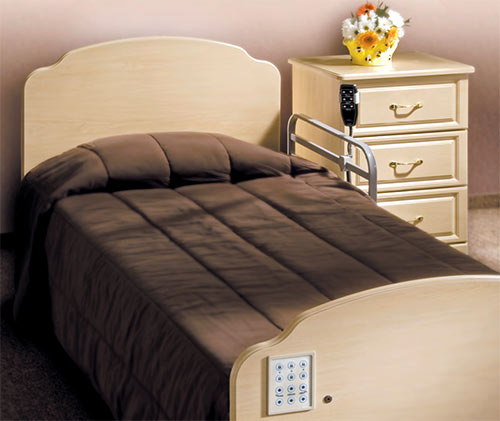

 BARI TRAPFREE

bed
lowbed1   lowbed1

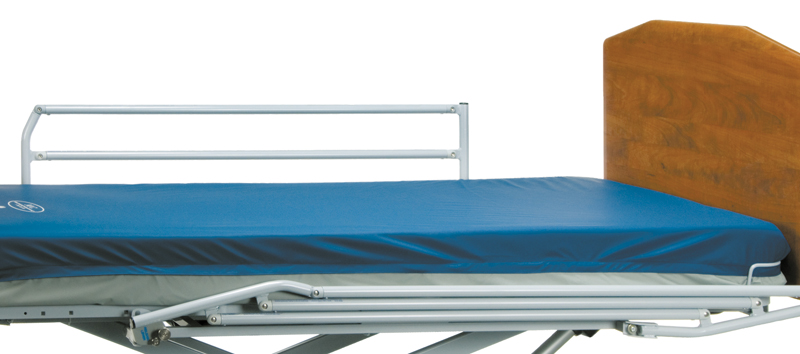

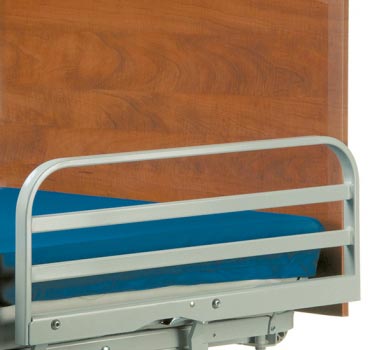

Collapsible 3/4 length side rails 1/2 length head end side rails

lowbed1 lowbed1

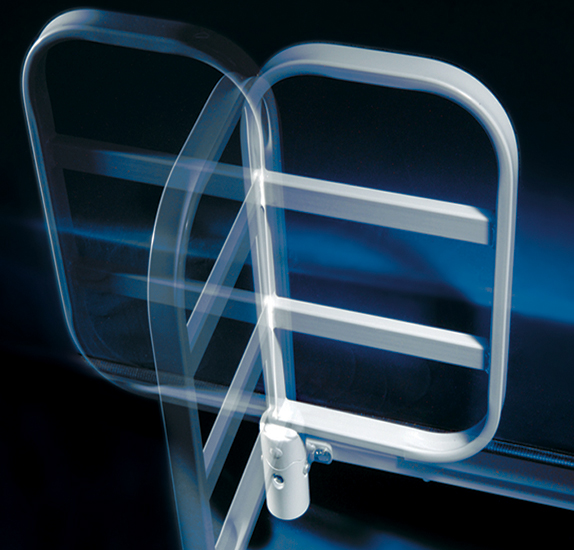

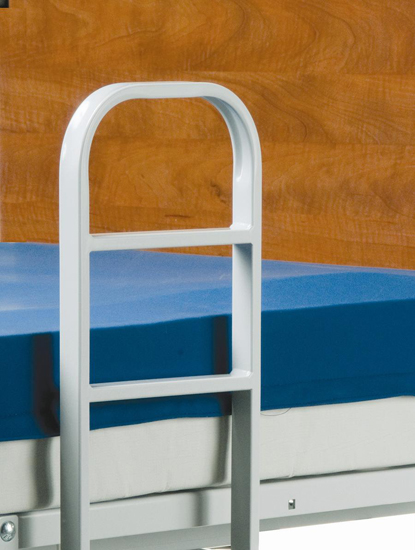

3 position assist rail Fixed assist rail

  KEY PRODUCT FEATURES
  • 7 7/8” low to 30” high
  • Mobile or locked at any height
  • Travels virtually straight up and down
  • Variety of  options and accessories
  • Choice of  head and footboard designs and finishes
  • Choice of  side and assist rails
  • Choice of  extenders
  • Baseboard bumper and corner mattress stops
  OPERATIONAL INSTRUCTIONS
There are currently no operating instructions for this product.
  AVAILABLE LITERATURE
AME3000Sell Sheet Low Bed 500 Low Bed 500 Brochure CLICK HERE
Click here to download Adobe Acrobat Reader.
  CERTIFICATIONS
Certified to UL/CSA standards
  ELECTRICAL SPECIFICATIONS
  • Electric Motors: Four (4) DC self lubricating Linear Actuators.
  • Voltage: 110 Volts
  • Hertz: 60 Hz
  • Rated Amps: 3.5 Amp Max
  • Cord Type / Length: 2.5 Meters minimum 3 prong.
  • Emergency Power back-up battery Pack: Optional. 24 Volt.
  MECHANICAL SPECIFICATIONS



QD1000

QD1000Y

Length including bumper

88 3/4''

 84 3/4''

 Length (deck)

80''

76''

 Width (deck)

35''



 Deck Height-Low

7 7/8''



 Deck Height-High

30''



 Deck Angles





 -Head elevation

0-70 degrees



 -Knee elevation

0-20 degrees



 Safe Working Load*

500 lbs.
